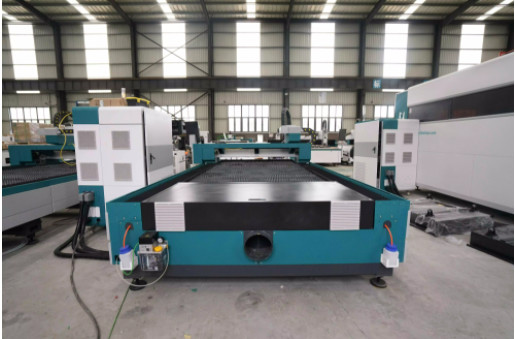

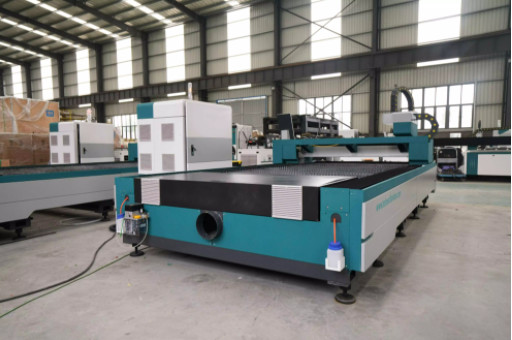

What's the feature of CNC Fiber Laser Cutting Machine?
Effective cutting size : 3000*1500mm*200mm
Raytools Fiber Laser Cutting Head
Cypcut control system
Delta servo motor
Raycus / Maxphotonics Fiber Laser
Sawteeth working table
Taiwan TBI Ball Screw,Germany Helical Rack and Pinion
Optional parts :
4th Rotary Axis for Metal Tubes
Enclosed cover,protect from laser.
Japan Shimpo Reducer
Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
Configuration of the Machine
Control SystemEmpower (from Switzerland)1:Recognized by over 300 domestic and foreign laser companies; 2:Match up with wireless DSP controller
Stable operation on over 20000 sets cutting machine; 4:Able to complete from the design, draw and process; 5:Simple, efficient,
powerful and reliable
Wireless DSP remote control
2:Industrial Water chiller
CW6100 water cooler Dual temperature dual control
1:Exclusive for Laser machines; 2:Multiple protection functions, passive alarm terminals and remote control terminals, easy to
achieve centralized CNC control and monitoring; 3:System components are used internationally renowned brands to ensure that the
equipment has excellent quality and good reliability
