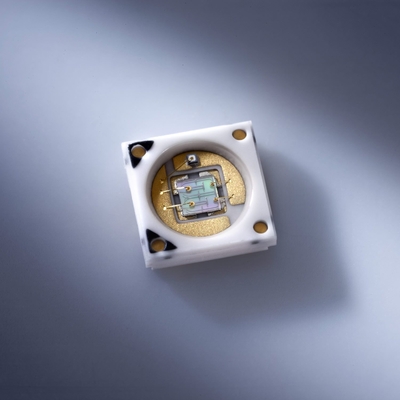

Medical Use UV SMD UVC Led 3535 Uvc Chip 100mA 150mA 20mW For Water Purifier ICU
Product Description
Our UV selection includes two packages, ATDS3534 @ 500 mA and ATS2012 @ 20 mA, with wavelengths ranging from 365 nm to 415 nm. Both packages are available in industry standard dimensions: 1414 (3.45 mm x 3.45 mm) hemispherical lens SMD and 0805 (2.0 mm x 1.2 mm) flat-top SMD. The UV LEDs are packaged in anti-static moisture-proof bags with MSL 1 degree of protection.
These UV SMD LEDs are widely used in many medical, dental, ink and cosmetic curing, PCB curing, counterfeit detection and purification applications.
Product Features
1. ATDS3534UVx UV LED with Ceramic Substrate:
2. High power UV-A type light emitting diode
3. Small package, high efficiency
4. Surface Mount Technology
5. Infrared reflow soldering method
6. Compliant with RoHS standard
| Product model | Liquefied Silicon-SMD 3535UVC-P1 |
| Peak wavelength | 250-260 nm; 260-270 nm; 270-280 nm |
| Forward current | 500mA |
| Soldering temperature | 230ºC for 5 seconds |
| Luminous intensity | 5000-10000 hours |
| Radiant Flux | 20-30 MW |
| Viewing angle | 120 degrees |
| Spectral half-width | 12 nm |
Applications
1. Nail salon, dental, medical and poster printing
2. Ultraviolet sensor lamp
3. Photocatalytic purification
4. Blood and counterfeit currency detection
5.Counterfeit Detection/Security
6.UV torch
