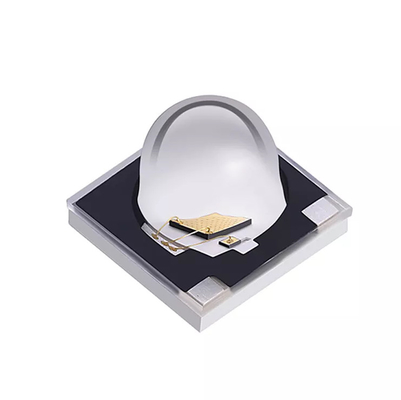

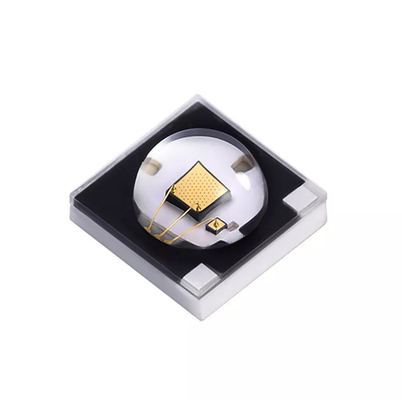

SMD UV LED 120 Degree Viewing Angle Quartz Glass Lens For Dental Medical Aesthetic Exam
Product Description
UVA (365-405nm) is used in UV curing, nail polish dryers, dental care, detectors for checking counterfeit items such as jewelry, currency art, etc., photocatalysts and other UV sensitive materials by polymerization, etc. UV LEDs can improve existing processes by enabling thinner, heat-sensitive substrates, while reducing harmful by-products such as ozone and improving workplace safety. Additionally, UV LEDs turn on and off instantly and efficiently utilize input power, reducing operating costs over the life of the application.
For S2835 SMD LED, 360~370nm 0.2W/0.5W UV-A LED can be provided, standard SMD package, 0.8mm thickness, we can provide more solutions for our customers according to different designs and applications, if you need customized services , please contact our sales staff for support.
Product Features
1. Durable quartz glass lens
2. High power UV-A type light emitting diode
3. Specially designed for high current operation
4. Surface Mount Technology
5. Infrared reflow soldering method
6. Compliant with RoHS standard
| Product model | S2835-UV-X |
| Dimension | 3.5* 2.8* 0.8 mm |
| Wavelength | 360nm ~ 370nm |
| Power | 0.2W / 0.5W |
| IF | 60mA / 150mA |
| VF | 3.2-3.8V |
| Viewing angle | 120 degrees |
| Beam Angle | 120 degree |
Applications
1. Nail Art, Dental, Medical and Poster Printing
2. Nail polish dryer
3. Photocatalytic purification
4. Blood and counterfeit currency detection
5. Check for counterfeit goods
6. UV flashlight
