4pcs High Quality SMD UV LED 6V 2.4W Wavelength 290NM 295NM 300NM UVB LED Panel
Product Description
Wholesale and custom UVB series products are available with wavelengths of 290nm UV LED, 295nm UV LED and 300nm UV LED. Optical power 5mW-200mW (optional), package series: 3535, 4545, 6565. The optical angle is 60°-120°, considering the irradiation area and intensity of uniform mixed irradiation. Provide UVB application solutions. (such as the development of pet lamps, skin phototherapy, pet calcium supplementation, plant cultivation, etc.)
Product Features and Specifications
1. Narrowband wavelength, no unwanted spectrum
2. Energy saving Compared with traditional lamps, energy saving is as high as 80%
3. Environmentally friendly non-metallic gas or harmful substance discharge technology
4. Ceramic substrate with improved heat transfer for thermal management

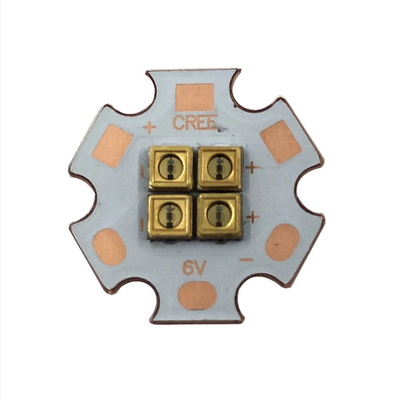

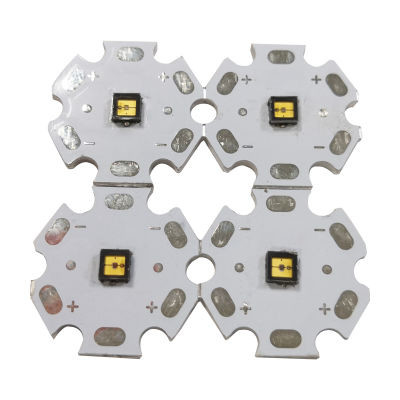

5. PCBA on Aluminum Metal Core Printed Circuit Board (MCPCB)
6. Dimensions: 20x 20 x 4.8mm (+/- 0.2mm) (L x W x H)
| Product model | Wavelength 290-300NM |
| Dimension | 20x 20 x 4.8mm (+/- 0.2mm) (L x W x H) |
| Wavelength (nm) | 290nm/295nm/300nm |
| light intensity | 40-60 MW |
| Luminous intensity | 30000 hours |
| Voltage | 6V |
| Viewing angle | 60-120 degrees |
| Lens Type | Quartz mirror |
Applications
1. UV curing
2. Anti-counterfeiting detection/security
3. Fluorescence Photography
4. Dental curing
5. Crime Check
6. Oil leak detection
