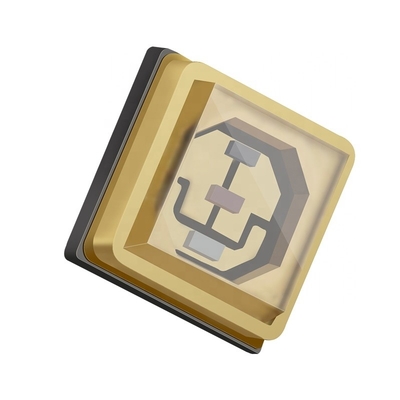

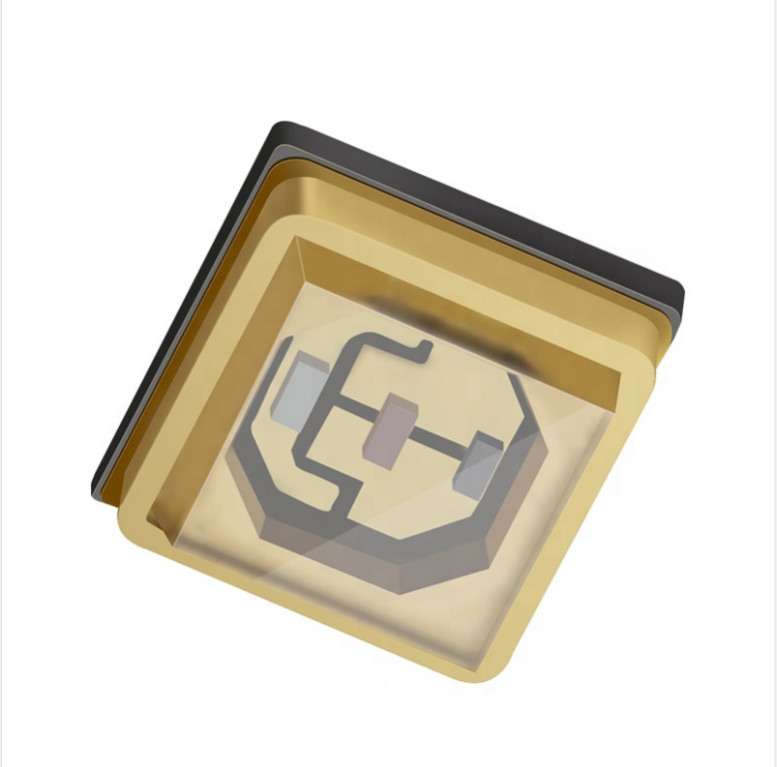

Fast Cure SMD6565 UV LED 365nm/385nm/395nm/405nm/415nm LED
Product Description
UVLED fluorescence detection can be integrated with the original medium of the system itself. When the circulation or flow of the system medium penetrates to the outside of the system and remains at the leak point, when the outside of the system is probed with the corresponding detection light, the leak point will emit a very bright fluorescence, indicating the precise leak point of the system. Fluorescent ink anti-counterfeiting printing technology is a method of printing tickets or documents with fluorescent ink to prevent counterfeiting. This kind of fluorescent ink can show the same fluorescence in a certain part of the printed matter under the irradiation of the purple light. The fluorescence is irradiated by the purple light. The light disappeared immediately.
Product Features and Specifications
1.100% Pure gold wire
2.Excellent Stability,Thermostability
3.365-415nm wavlength
4.High purity aluminum nitride support
5.Quartz packaging high reliability
6.OEM & ODM customized specification available
7.45°/60°/90°/120° lens angle optional
8.Specification 27*21*12cm(1200pcs/box))
| Parameter | Symbol | Min | Type | Max | Unit | Tolerance | Test Conditions |
| Forward Voltage(VF) | 1000mA | 6.8 | 7.1 | 7.4 | V | ±0.1V | IF/Forward voltage |
| 1400mA | 7.1 | 7.4 | 7.7 | =1400mA | |||
| 2000mA | 7.4 | 7.7 | 8 | Test Temperature | |||
| Wavelength | --- | --- | 385-415 | --- | nm | ±1nm | 25°C |
| Radiant Flux | 1000mA | 2000 | 3000 | --- | mW | ±100mW±100mW | |
| 1400mA | 3000 | 4000 | |||||
| 2000mA | 4000 | 5000 | |||||
| Lighting Angle | --- | --- | 45 | --- | deg | ±5 | |
| Reverse Current | IR | --- | --- | 20 | uA | ±1uA | |
| Life Time | LR | 1000 | --- | --- | Hour | ±500 |
Applications
UVLED Fluorescence Inspection Application Field: PCB Field: Exposure, Curing, Printing Plate, Drying FPD Field: Exposure, Curing, Printing Plate, Cleaning Semiconductor Field: Graphic Transfer, Curing, Printing Plate, Exposure, Cleaning Printing and Dyeing Field: Drying, Curing, Printing Plate, exposure, clean food and water treatment field: sterilization, deoxygenation, TOC decomposition, food preservation, medical biochemical field: sterilization, phototherapy, air purification, isotope separation, genetic engineering furniture and clothing field: drying, curing, printing Special effect projection field: screen projection, special effect lighting Criminal investigation and detection field: fluorescence analysis, anti-counterfeiting detection, cultural relic identification
