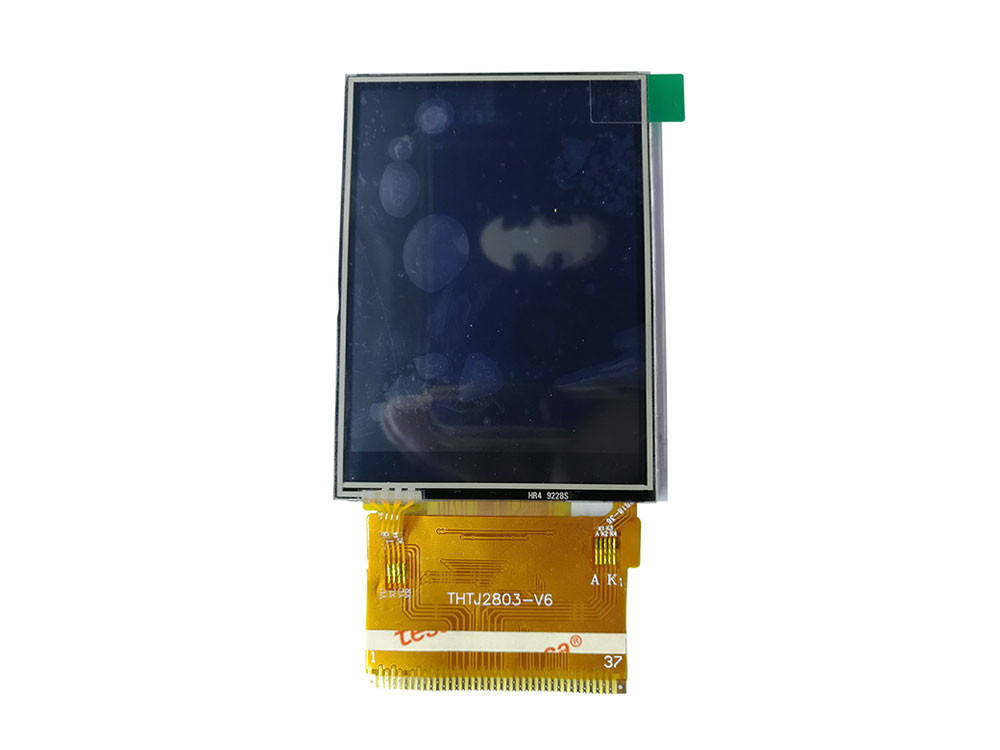

3.2inch LCD Panel 240x320 Small TFT 3.2 Inch MCU Touch Screen
Product description:
* KWH032ST05F02 is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.
* It is 240x320 resolution TFT LCD module.
* Backlight with different brightness options from 250 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
Product details:
| Product Name | 3.2inch LCD Panel 240x320 Small TFT 3.2 Inch MCU Touch Screen |
|---|---|
| LCD Size | 3.2 Inch TFT LCD Display Module |
| Display Mode | Transmissive |
| Resolution | 240x320 |
| Outline Dimension (mm) | 55.94x77.60x3.60 |
| Active Area (mm) | 48.60x64.80 |
| Dot pitch (mm) | 0.2025x0.2025 |
| Viewing Direction | 12 O'Clock |
| Interface | MCU/RGB/Serial Interface, 46 Pin |
| Driver IC | ILI9341 |
| Brightness (Cd/m2) | 260 |
| Contrast Ratio | 500:1 |
| Backlight | 5 White LED in Parallel |
|
Backlight Supply (Current/Voltage) |
75mA 3.2V |
| Touch Screen | With Resistive Touch Screen |
Company information:
Formike Group, the leading supplier of TFT LCD Display, Monochrome LCD, Segment LCD, OLED Display, Wifi Module, Cell Phone Parts, Smart Watch and Smart Bracelet industry.We engage in developing and manufacturing related products and solution over 22 years experience.Our products are widely used in smart homes, intelligent buildings , smart hotel, smart park, smart health, smart security, smart travel and other fields.Rich experience and friendly communication make sure that the best solution of customized or semi-custom can be done in short time.
Formike has strong technical strength , provide integrated software and hardware solutions. and More than 20% of the company's employees are experienced and experienced technical researchers. We have automatic SMT high-speed production line, wave soldering plug-in line, test line, aging room, shielding room, assembly line, packaging line, quality laboratory and other equipment and facilities.
Backed up by other full advanced production equipment and production technology, we provide support for various domestic and overseas famous clients from USA, Europe, and Asia, etc.
We are certified to the ISO9001 & ISO14001 successfully.The annual production capacity reaches 500,000,000 pieces.All of our products are RoHS, CE, FCC compliant.
We are committed to creating maximum values for clients. We support Customize LCD accroding to your demand.Whether selecting a current product from our catalog or seeking for engineering assistance, you are more than welcome to contact us.
FAQ:
1.Q: Order process
A:PO is placed by client → PI is issued by Formike → Payment by client → Lead time is
confirmed by Formike → Shipping Doc. is provided by Formike → Shipping instrction by Client → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days
Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty since Delivery Day
5.Q:RMA Process
A:Claime issued by client with photos or videos → QA of Formike confirm the claim → RMA No. provided by Formike → Analysis report provided by Formike in 5~10 working days after defective is received → The two parties will discuss the report, if necessary → Proceed as per the final report.
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
