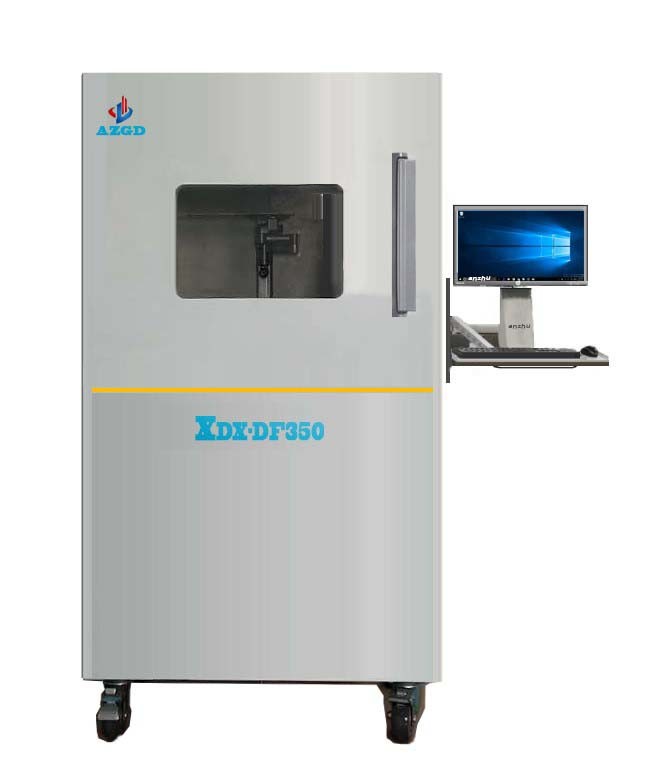

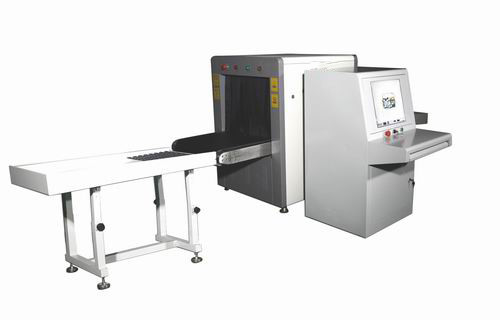

X Ray Machine Mobile / Ic / Baterry / Car Laptop Motherboard Testing Equipment
Specifications:
| model | 3500A (X-ray 100KV) |
| Display | 22" LCD monitor |
| Image area | 600*415 mm |
| Image Resolution | 110 LP/CM |
| CCD Pixel | 1.3 million |
| Camera Spec | Image Intensifier+Digital CCD 25 frames/m |
| Magnification | 120(Geometric )/1200(System) |
| X-ray Output Voltage | 90 ~ 130 KV |
| Field of view | 0 ~ 70℃ tilt, 360℃ rotate |
| Focal Spot | 5 um |
| X-Ray Tube Type | Closed tube |
| Power Supply | Single phase AC 110~230V/50~60HZ |
| Weight | 1100KG |
| Testable Weight | sample <5 |
| Work Table | X / Y / Z / Q Axis |
| Manual Operation | by keyboard/mouse/navigation positioning |
| CPU | Intel Pentium |
| Memory | 2GB |
| Computer System | Win7 |
| Input | Keyboard |
| Report Output | Manual/auto save tested doc |
| video Function | Standard |
| Dimension | 1160*1090*1857 mm |
| Navigation | Automatic scanning navigation |
| 3D View | Imitation |
| Void, BGA, Distance Inspection | Auto-inspect function settable |
| BGA Auto Inspection | set the counting of BGA inspection,measurement and bubble |
| Inspection Area | X / Y plane direction |
| Special Isolation | Non |
| Temperature Humidity | 0-40℃ 0-90% |
| Suspended matter | non-conductivity dust |
Applications:
1. Semiconductor: Inner structure of IC, FC, CSP package inspection
2. Aluminum casting relates to cars, bubble &fissure of rubber and resin products inspection
3. Short & open circuit in BGA package, bubble area in BGA inspection and auto-judgment
4. Aerospace and military, aerofoil, bullet etc.
5. Troche in medicine, FRP in chemical products, resin, ceramics.
6. Lithium battery, electronic components (capacitor, resistor, diode & audion, led etc.) inspection
Features:
1. Imported Micro X-Ray tube with original packaging(100/130Kv closed tube), highly-sensitive image intensifier, 1.3 million pixels industrial
digital CCD camera, able to detect item <5μm,display clear image.
2. Adjustable high power geometric & system magnification, easy to find out tiny defect with high detecting speed.
3. System navigation chart, navigating rapidly and positioning accurately.
4. Observe object at ±70°, detecting from particular angle, easy to detecting inner structure
5.Five axis moving coordinately, with function of CNC auto-detects in quantity, suitable for detecting in large quantity with high accuracy.
