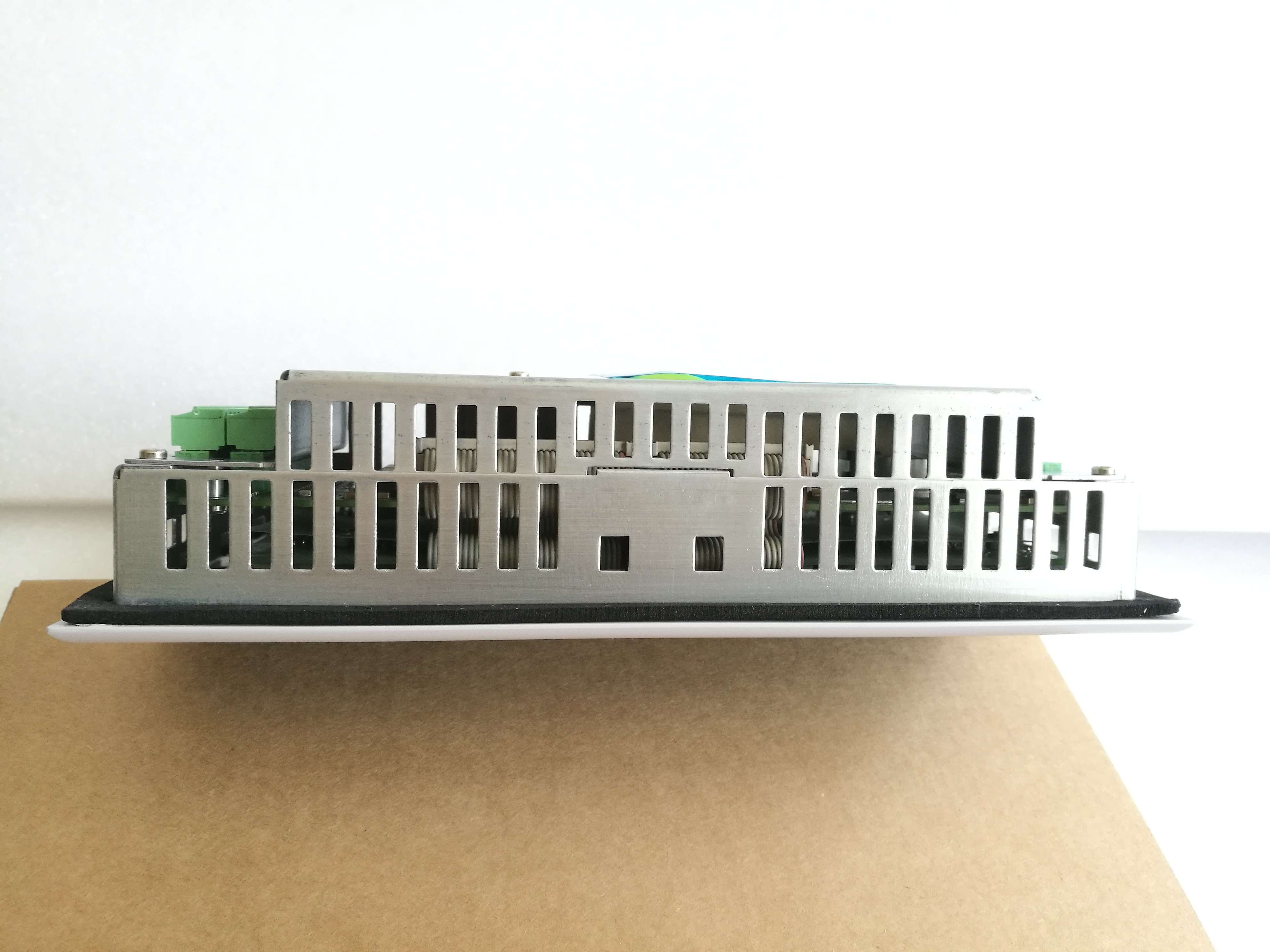

Capacitive Touch Panel 7Inch With Multi Points For PLC Touch Screen Foil
Product description:
1. projected capacitive, multi-touch Glass+Glass HMI, nimble touch, high light transmittance, anti-scratching, no drifting.
2. ARM Cortex A8 processor, high speed and easy flow, supporting animation formats(including BMP, JPG, GIF, PNP...etc, can be imported and displayed directly.
Product details:
OMRON Touch screen HMI
|
Specifications |
NB3Q |
NB5Q |
NB7W |
NB10W |
|||
|---|---|---|---|---|---|---|---|
|
TW00B |
TW01B |
TW00B |
TW01B |
TW00B |
TW01B |
TW01B |
|
| Display type | 3.5 inch TFT LCD | 5.6 inch TFT LCD | 7 inch TFT LCD | 10.1 inch TFT LCD | |||
| Display resolution (H×V) | 320×240 | 320×234 | 800×480 | 800×480 | |||
| Number of colors | 65,536 | ||||||
| Backlight | LED | ||||||
| Backlight lifetime |
50,000 hours of operating time at the normal temperature (25 ° C) 1. This is the estimated time when the luminous intensity is decreased by 50% per LED at room temperature and humidity. It is a typical value.
|
||||||
| Touch panel | Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations | ||||||
| Dimensions in mm (H×W×D) | 103.8×129.8×52.8 | 142×184×46 | 148×202×46 | 210.8×268.8×54.0 | |||
| Weight | 310 g max. | 315 g max. | 620 g max. | 625 g max. | 710 g max. | 715 g max. |
1,545 g max. |
1. When you received the goods , please check the goods whether are broken, other damage or lack of the delivery. If you found above condition, please contact us immediately , we will give you replacement or return goods.
2. OEM/ODM service
We are welcome OEM and ODM orders.
3. For the touch screen, we have 1 years warranty.If any quality problems on our side were found in this period,we will send you the replacement in your right now.
Product application:
| Application: | |
| Vehicle use | Driving recorder, car navigation, rear pillow |
| Industrial control | Human-machine interface, advertising machine, ATM equipment, Cash register, charging pile, refrigerator, vending machine, coffee machine, printer, industrial computer, electric instrument, touch display, touch all-in-one machine, Military, VTM |
| Medical equipment | Face recognition, queuing machine, gas detector, beauty equipment |
| Consumer category | Tablet PC MID, game console, MP5, handheld device factory, disinfection cabinet, digital watch, Smart wearable |
| Smart homes | Security, ordering machine, magic mirror, access control, data acquisition system |
| Face recognition | Access control, gate, medical |
FAQ:
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
