Touch Capacitive Multi Touchscreen Panel TFT TN 800*480 RGB LCD Touch Display
Product description:
Model | WTY070144A12LM | Touch Type | Capacitive |
Size | 7 Inch | Touch Points | 10 Points |
LCD Type | TFT | Touch IC Chip | ILI2511 |
Display Type | TN | Touch Structure | G+G |
Interface | RGB | Touch Interface | USB |
Pin No. | 50Pin | Touch Hardness | 6H |
Resolution | 800×480 | Operating Temperature | -10ºC~+50ºC |
Brightness | 450cd/m2 | Storage Temperature | -20ºC~+60ºC |
Viewing Angle Range | 70/70/50/70Deg. | Bonding Method | Optical Bonding, Air Bonding |
Contrast Ratio | 500:1 | Support System | Windows, Android, Linux etc |

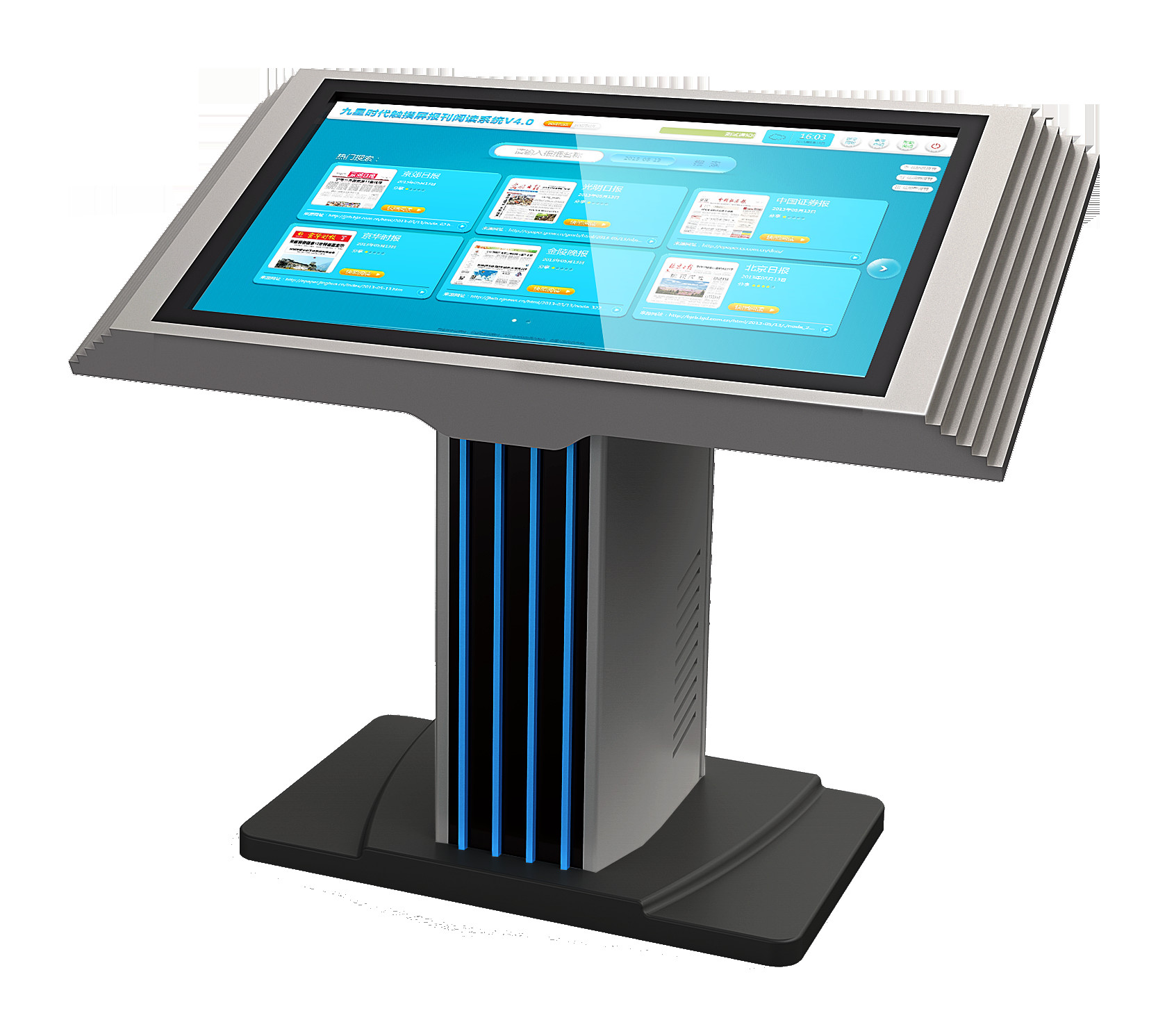

LCD Active Area (mm) | 154.67x86.52 | Application Fields | Industrial Control, Home Automation, Medical Device, Self-service Terminal etc |
LCD Outline Dimension (mm) | 192.96x110.76x1.45 |
1. When you received the goods , please check the goods whether are broken, other damage or lack of the delivery. If you found above condition, please contact us immediately , we will give you replacement or return goods.
2. OEM/ODM service
We are welcome OEM and ODM orders.
3. For the touch screen, we have 1 years warranty.If any quality problems on our side were found in this period,we will send you the replacement in your right now.
FAQ:
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
