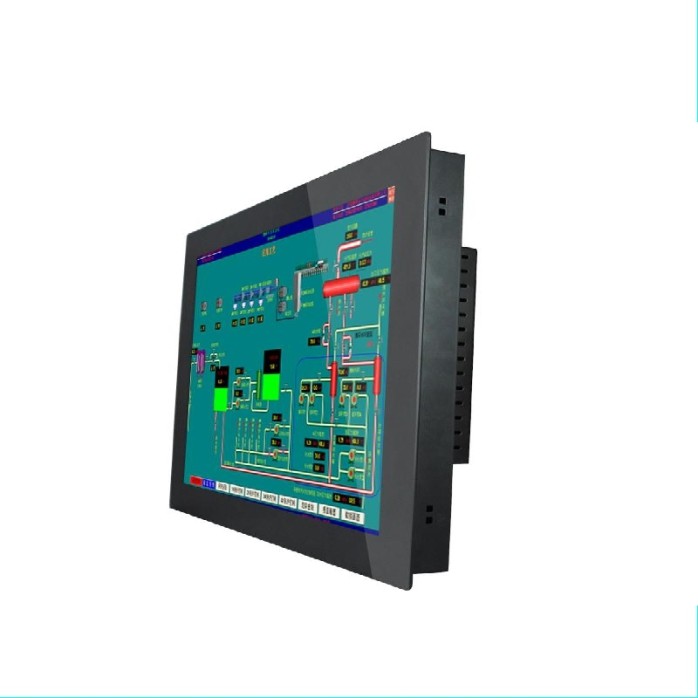

Industrial Panel Plc Programming Controller With Lcd Touch Screen Panel Linux
Product description:
*27-inch 16:9 widescreen, 1920*1080 high-definition high-resolution, A+ perfect LCD display;
*Support power-on and uninterrupted operation around the clock;
*Adopting Taiwan EETI solution + industrial-grade capacitive touch screen, with good stability, high accuracy and not afraid of dust, water vapor, oil, etc., adapt to various harsh environments, and support water to touch;
*The whole machine is designed in accordance with the NEMA4/IP67 waterproof and dustproof rating, and the interface sockets are all CNLINKO brand aviation plugs; the shell is made of SUS304 material, which is more durable, corrosion-resistant and resistant to shock and vibration;
*DC 12V power supply to meet industrial field applications (DC 24V/DC 9-36V wide voltage is optional);
*Support wall-mounted installation;
*Operating System: Supports connection to industrial computers such as Windows, Linux, Android, etc.
|
Model
|
WTY070144A12LM
|
Touch Type
|
Capacitive
|
|
Size
|
7 Inch
|
Touch Points
|
10 Points
|
|
LCD Type
|
TFT
|
Touch IC Chip
|
ILI2511
|
|
Display Type
|
TN
|
Touch Structure
|
G+G
|
|
Interface
|
RGB
|
Touch Interface
|
USB
|
|
Pin No.
|
50Pin
|
Touch Hardness
|
6H
|
|
Resolution
|
800×480
|
Operating Temperature
|
-10ºC~+50ºC
|
|
Brightness
|
450cd/m2
|
Storage Temperature
|
-20ºC~+60ºC
|
|
Viewing Angle Range
|
70/70/50/70Deg.
|
Bonding Method
|
Optical Bonding, Air Bonding
|
|
Contrast Ratio
|
500:1
|
Support System
|
Windows, Android, Linux etc
|
|
LCD Active Area (mm)
|
154.67x86.52
|
Application Fields
|
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc
|
|
LCD Outline Dimension (mm)
|
192.96x110.76x1.45
|
|
1. Good quality with cost effective price.
2. MOQ is 1 piece.
3. Product leading time is 7- 15 working days according to the quantity.
4. Provide OEM service and can customize products according to the drawing.
5. Strictly control every detail of production, and each product will be inspected by our QC team before delivery.
6. ISO Certified Standards.
7. Safety Agency Certifications.
8. Complete Deployment Services.
FAQ:
1. Q: Do you accept OEM service?
A: Yes,We can do OEM&ODM service and can customize products according to the drawings you supply.
2. Q: What about the delivery time?
A: Generally, the sample order is 3 to 15 working days. While for OEM order or that with special requirement on configuration, then the leading time is 15-20 working days after all order details confirmed.
3. Q: How could I get samples?
A: Free sample is not available. If you need to order sample for checking-up, then both the sample and shipping cost should be charged by you, we will deliver them to you after receiving your payment.
