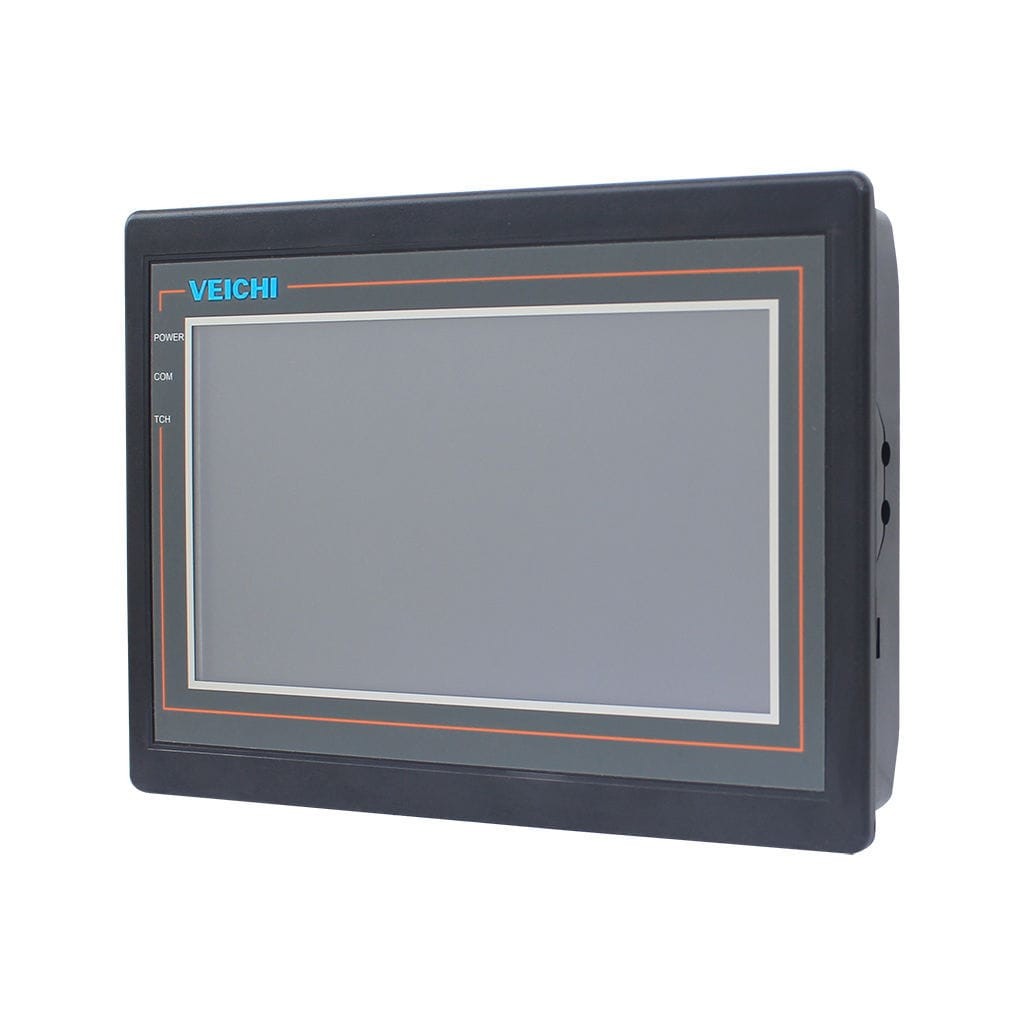

Waterproof 7 Inch HMI Touch Screen Panel LCD Support Cloud Servers
Product description:
|
Item
|
Conditions
|
Min
|
Typ
|
Max
|
Unit
|
|
Working Temperature
|
60%RH at 5V voltage
|
-20
|
25
|
70
|
℃
|
|
Storage Temperature
|
-
|
-30
|
25
|
85
|
℃
|
|
Working Humidity
|
25℃
|
10%
|
60%
|
90%
|
RH
|
|
Protective Paint
|
-
|
-
|
None
|
-
|
-
|
|
Electrostatic protection capability
|
Air discharge
|
-
|
±4KV
|
-
|
-
|
|
Contact discharge
|
-
|
±4KV
|
-
|
-
|
|
|
Group pulse
|
(CCS500)GB/T17626.4-2008 1KV 100KHz
|
-
|
2 Level
|
-
|
-
|
|
Item
|
Conditions
|
Min
|
Typ
|
Max
|
Unit
|
|
Baudrate
|
User Set
|
3150
|
115200
|
3225600
|
bps
|
|
Output Voltage
(TXD) |
Output 1, Iout =1mA
|
3.0
|
3.3
|
-
|
V
|
|
Output 0, Iout = -1mA
|
-
|
0
|
0.3
|
V
|
|
|
Input Voltage
(RXD) |
Input 1, Iout =1mA
|
2.4
|
3.3
|
5.0
|
V
|
|
Input 0, Iout = -1mA
|
0
|
-
|
0.5
|
V
|
|
|
Interface
|
UART2:N81,3.3V & 5V TTL/CMOS
UART4:Optional N81/E81/O81/N82 four mode,3.3V & 5V TTL/CMOS(Be used after OS configuration)
|
||||
|
Socket
|
10Pin_1.0mm FCC Socket
|
||||
|
Slot
|
YES (Micro SDHC(TF) card /FAT32 Format)
|
||||
|
USB
|
None
|
||||
Packaging & delivery
| Quantity(pieces) | 1 - 1 | 2 - 100 | 101 - 1000 | >1000 |
| Lead time (days) | 7 | 14 | 21 | To be negotiated |
